Mesura S24

  • Description
  • Technical Data
  • Download

Description

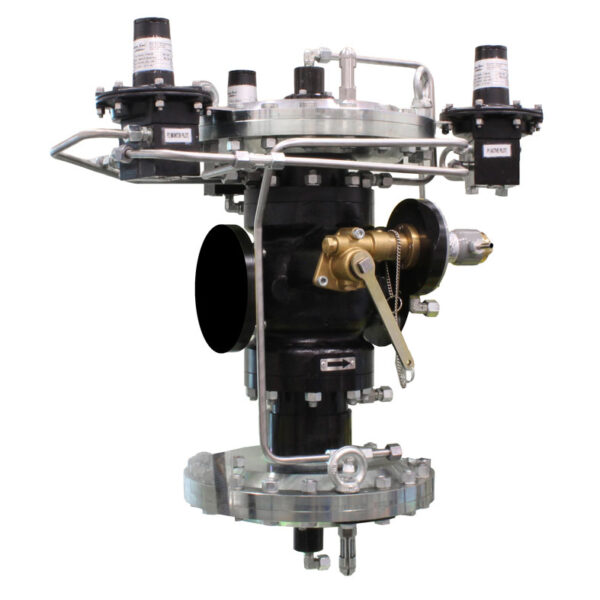

The S24 regulator is a pilot operated regulator designed for industrial and distribution applications.
The S24 offers unmatched installation flexibility with an available integrated monitor and/or slam-shut valve.
This allows 1, 2 or 3 devices to be mounted in the same body with no piping modifications required.
Designed for simplified maintenance, the S24 is capable of increasing system reliability and eliminating emissions; all in one package.

Inlet Pressure:

  • 290 psig (20 barg)

Outlet Pressure Ranges:

  • 4” w.c. to 58 psig (10 mbar to 4 barg)

Regulating Accuracy Class

  • Up to 1% (AC1)

Working Temperature Range

  • -4oF to 140oF (-20oC to 60oC)

Inlet/Outlet Connections:

  • CL150 RF or CL300 RF
  • NPS 1, 2 and 3

Available Configurations:

  • X: With built-in monitor regulator
  • B: With built-in slam shut valve
  • XB: With monitor and SSV
